12-Strand Polypropylene Monofilament Fiber Rope with Lightweight, High Strength, and UV-Resistant Marine Rope
Description:
GB/T8050-2017 12 strand polypropylene monofilament fiber rope is made of polypropylene monofilament fiber. It can withstand extreme temperatures, severe weather, UV, chemicals, oil, abrasion and tearing. The rope has high tensile strength, durable knots and excellent performance.It is a practical solution for decorative, ranching, agricultural.Due to its good performance of high strength and floating on the water ,not absorb water,the ropes also widely use as mooring rope,station rope in marine site.
Product features:
Lightweight Design,The rope is exceptionally lightweight, making it easy to handle, transport, and deploy, even for heavy-duty applications
High Strength and Durability,With excellent tensile strength, it can withstand heavy loads and demanding tasks, ensuring reliable performance over time
UV Resistance,Specifically designed to resist damage from prolonged exposure to sunlight, making it ideal for outdoor and marine environments
Abrasion Resistance,The monofilament fiber construction provides high resistance to wear and tear, ensuring durability even in rugged applications
Floating Capability,Polypropylene material allows the rope to float on water, making it perfect for marine use, such as mooring, towing, and fishing operations
Low Water Absorption,The rope does not absorb water, which prevents swelling, weakening, or loss of performance when used in wet environments
Chemical Resistance,Resistant to most chemicals, oils, and solvents, ensuring durability in various industrial and marine applications
Flexible and Easy to Handle,Despite its strength, the rope remains flexible, making it easy to knot, splice, and handle during use
Cost-Effective,A budget-friendly option compared to other synthetic ropes, while still delivering high performance and long service life
Versatile Applications,Suitable for a wide range of uses, including marine, industrial, construction, agriculture, and recreational purposes
Main Technical Specifications:
- Standard: GB/T8050-2017
- Material: Polypropylene monofilament
- Diameter: 20mm to 128mm
- Construction: 12-strand
- Structure: Z-twist(right hand lay)
- Test: Destructive and Tension test
- Classification Certificates: RINA ,BV ,CCS ,CR ,NK ,ABS ,DNV ,LR and Mill Certificate
- Color: White, Blue, Yellow, Orange as ordered
- Application: Decorative, ranching, agricultural, marine,mooring
- Advantages: Withstand extreme temperatures, severe weather, UV, chemicals, oil, abrasion and tearing, high tensile strength, durable knots and excellent performance
Main Technical Parameters:
| Reference NO.1 |
Linear density2.3 |
Minimum breaking strength kN4.5 |
|
Nominal
ktex
|
Tolerance
%
|
Unspliced ropes |
Ropes with eye-spliced terminations |
| 20 |
181 |
±5 |
53 |
47.7 |
| 24 |
260 |
75 |
67.5 |
| 28 |
354 |
100 |
90 |
| 30 |
407 |
112 |
101 |
| 32 |
463 |
132 |
119 |
| 36 |
586 |
160 |
144 |
| 40 |
723 |
200 |
180 |
| 44 |
875 |
236 |
212 |
| 48 |
1040 |
280 |
252 |
| 52 |
1220 |
335 |
302 |
| 56 |
1420 |
375 |
338 |
| 60 |
1630 |
425 |
383 |
| 64 |
1850 |
475 |
428 |
| 72 |
2340 |
600 |
540 |
| 80 |
2890 |
750 |
675 |
| 88 |
3500 |
900 |
810 |
| 96 |
4170 |
1060 |
954 |
| 104 |
4890 |
1250 |
1125 |
| 112 |
5670 |
1400 |
1260 |
| 120 |
6510 |
1600 |
1440 |
| 128 |
7410 |
1900 |
1710 |
|
1.The reference number corresponds to the approximate diameter, in millimetres.
2. The linear density, in kilotex, corresponds to the net mass per length of the rope, expressed in grams per metre or in kilograms per kilometre.
3. The linear density is obtained under reference tension and is measured as specified in ISO2307.
4. The breaking forces relate to new, dry and wet ropes.
5. A force determined by the test methods specified in ISO2307 is not necessarily an accurate indication of the force at which that rope might break in other circumstances and situations. The type and quality of terminations, the rate of force application, prior conditioning and previous force applications to the rope can significantly influence the breaking force. A rope bent around a post, capstan, pulley or sheave may break at a significantly lower force. A knot or other distortion in a rope may significantly reduce the breaking force.
|
Drawing of 12-Strand Polypropylene Monofilament Fiber Rope with Lightweight, High Strength, and UV-Resistant Marine Rope:

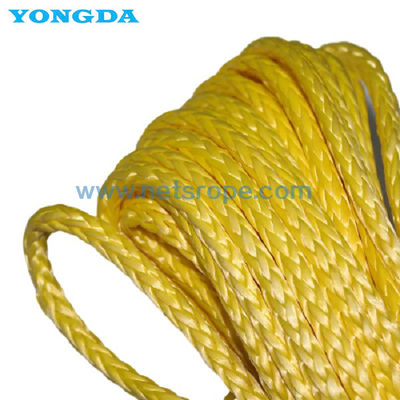

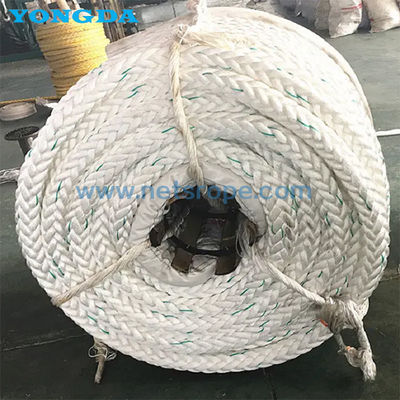

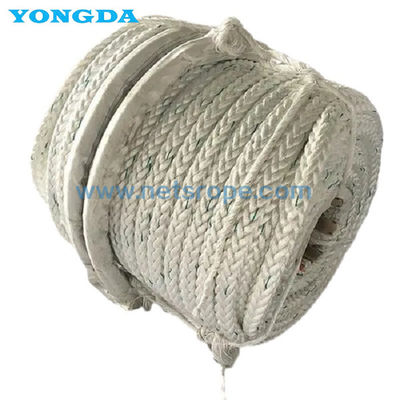

Photos of 12-Strand Polypropylene Monofilament Fiber Rope with Lightweight, High Strength, and UV-Resistant Marine Rope:
FAQ:
Q0: Are you a factory or trading company?
A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.
Q1: What is your terms of packing?
A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.
Q2: What is your terms of payment?
A2: T/T & LC.
Q3: What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU.
Q4: How about your delivery time?
A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.
Q5: Can you produce according to the samples?
A5: Yes, we can produce as your samples or drawings.
Q6: What is your sample policy?
A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.
Q7: Do you test all your goods before delivery?
A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
