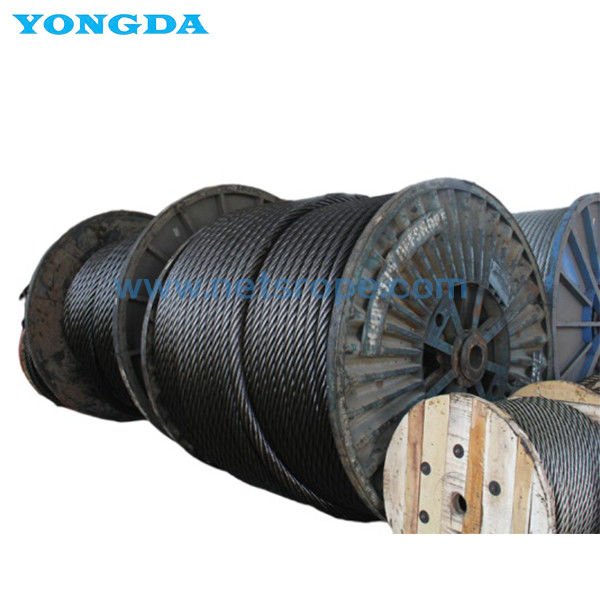

6 Strand 6x36 Offshore Mooring Steel Wire Rope

 6 Strand 6x36 Offshore Mooring Steel Wire Rope

Product Description:

The GB/T 33364-2016 6 Strand 6x36 Offshore Mooring Steel Wire Rope is manufactured using high tensile strength galvanized steel wire. The rope is constructed with either a right ordinary lay (S Z) or left ordinary lay (Z S). The wire rope core typically consists of an independent wire rope core (IWRC) or a wire strand core (WSC). It is primarily used for positioning and anchoring mobile drilling platforms, floating production units, and offshore loading systems.

Product Features:

High Strength: Made from high tensile strength galvanized steel wire, providing excellent load-bearing capacity and durability.

Various Constructions: Available in different constructions such as 6x36WS, 6x41WS, 6x49SWS, and 6x46WS, catering to diverse application requirements.

Optional Wire Rope Core: Can be selected with either an independent wire rope core (IWRC) or a wire strand core (WSC) to offer different structural characteristics.

Enhanced Surface Treatment: Galvanized and rust-proof greasing provide superior corrosion resistance and extended service life.

Comprehensive Certifications: Certified by reputable organizations including RINA, BV, CCS, CR, NK, ABS, DNV, LR, and Mill Certificate, ensuring quality and reliability.

Wide Applications: Mainly used for positioning and anchoring of mobile drilling platforms, floating production units, and offshore loading systems.

Lightweight Design: Compared to alternative mooring wire ropes, it features a lightweight design, facilitating easier installation and handling.

High Strength: Capable of withstanding impact loads and high tensions, ensuring safe and reliable mooring performance.

Exceptional Durability: Carefully engineered and manufactured for excellent durability, suitable for prolonged use in harsh marine environments.

Flexibility: Exhibits good flexibility and bending performance, accommodating complex mooring requirements.

Reliable Performance: Rigorously tested and subjected to stringent quality control measures to deliver consistent and dependable performance.

Easy Installation and Maintenance: The lightweight design and flexible construction make installation and maintenance processes convenient and efficient.

Long Service Life: Utilizes high-quality materials and advanced manufacturing techniques, resulting in a long service life and low maintenance costs.

Corrosion Resistance: Galvanized treatment and rust-proof greasing provide excellent corrosion resistance, adapting to the challenges of marine environments.

Versatility: Customizable in terms of dimensions, constructions, and packaging options to meet specific requirements.

Safety: Ensures safe and reliable mooring solutions in high-risk marine environments through rigorous testing and certifications.

Environmental Friendly: Complies with environmental regulations, incorporating sustainable materials and manufacturing processes.

Main Technical Parameters:

 6 Strand Class 6x36 Offshore Mooring Steel Wire Rope

		Typical Construction
		Rope Construction	Strand construction	No. of outer layer wires
				Total	Per Strand
		6x36WS	1-7-7+7-14	84	14
		6x41WS	1-8-8+8-16	96	16
		6x49SWS	1-8-8-8+8-16	96	16
		6x46WS	1-9-9+9-18	108	18
Nominal Dia. mm	Approximate weight kg/100m	Rope Grade
		1570	1770	1960
		Minimum breaking force kN
52	1130	1510	1700	1890
56	1310	1750	1980	2190
60	1500	2010	2270	2510
64	1710	2290	2580	2860
68	1930	2580	2910	3230
72	2170	2900	3270	3620
76	2410	3230	3640	4030
80	2680	3580	4030	4470
84	2950	3900	4450	4920
88	3240	4330	4880	5400
92	3540	4730	5330	5910
96	3850	5150	5810	6430
100	4180	5590	6300	6980
104	4520	6050	6820	-
108	4880	6520	7350	-
112	5240	7010	7900	-
116	5620	7520	8480	-
120	6020	8050	9070	-
