Product Details:
|
| Standard: | ISO1140:2021(E) | Material: | Nylon |
|---|---|---|---|
| Size: | Dia: 10-160mm | Construction: | 4-strand |
| Type: | B Type | Test: | Destructive And Tension Test |
| Certificates: | RINA, BV, CCS, CR, NK, ABS, DNV, LR, RS, IRS, EC, TUV And Mill Certificate | Colour: | White As Basic, Or As Ordered |
| Application: | Oil Exploration, Power Construction, National Defense Scientific Research | Advantages: | High Strength, Good Resistance |
| High Light: | 10mm nylon marine rope,160mmmm nylon marine rope,Z twist Marine 4 strand rope |
||
4-Strand Marine Nylon Rope
Description:
4-Strand nylon marine rope is made of 100% high strength nylon fibre, so it is not easy to be corroded by molds. It has good resistance to ultraviolet deterioration iform sunlight. It is elastic, thus can stand sudden shock loads during the situation of lifting or towing.Nylon rope is rot free and is not affected by water,oil and most chemicals. 4-Strand nylon rope is widely used in ship equipment, port loading and unloading, fishing, oil exploration,power construction, national defense scientific research and other fields.
Main Technical Specifications:
1.Standard: ISO 1140:2021(E)
2.Material: Nylon(Polyamide)
3.Diameter: 10mm to 160mm
4.Construction: 4-strand
5.Type: Laid ropes Z-twist(right-hand lay),Strands S-twist and Roping yarns Z-twist
6.Test: Destructive and Tension test
7.Classification Certificates: RINA ,BV ,CCS ,KR ,NK ,ABS ,DNV ,LR and Mill Certificate
8.Color: White,as your needs
9.Application: Oil exploration,power construction, national defense scientific research
10.Advantages: High strength, good resistance
Main Technical Parameters:
Linear density and minimum breaking strength(MBS) of 4-strand shroud-laid polyamide ropes,type B
| Reference NO. | Linear density | Minimum breaking strength kN | ||
| Nominal ktex |
Tolerance % |
Unspliced ropes | Ropes with eye-spliced terminations | |
| 10 | 61.7 | ±10 | 19 | 17.1 |
| 12 | 88.8 | ±8 | 28 | 25.2 |
| 14 | 121 | 35.5 | 31.9 | |
| 16 | 158 | 47.5 | 42.8 | |
| 18 | 200 | 56 | 50.4 | |
| 20 | 247 | 71 | 63.9 | |
| 22 | 299 | 85 | 76.5 | |
| 24 | 355 | 100 | 90 | |
| 26 | 417 | 118 | 106 | |
| 28 | 484 | 132 | 119 | |
| 30 | 555 | 150 | 135 | |
| 32 | 632 | 170 | 153 | |
| 36 | 800 | 212 | 191 | |
| 40 | 987 | ±5 | 265 | 239 |
| 44 | 1190 | 315 | 284 | |
| 48 | 1420 | 375 | 338 | |
| 52 | 1670 | 425 | 383 | |
| 56 | 1930 | 500 | 450 | |
| 60 | 2220 | 560 | 504 | |
| 64 | 2530 | 630 | 567 | |
| 72 | 3200 | 800 | 720 | |
| 80 | 3950 | 950 | 855 | |
| 88 | 4780 | 1180 | 1062 | |
| 96 | 5690 | 1400 | 1260 | |
| 104 | 6670 | 1600 | 1440 | |
| 112 | 7740 | 1900 | 1710 | |
| 120 | 8880 | 2120 | 1908 | |
| 128 | 10100 | 2360 | 2124 | |
| 136 | 11400 | 2650 | 2385 | |
| 144 | 12800 | 3000 | 2700 | |
| 160 | 15800 | 3550 | 3195 | |
Drawing of 4-Strand nylon marine rope

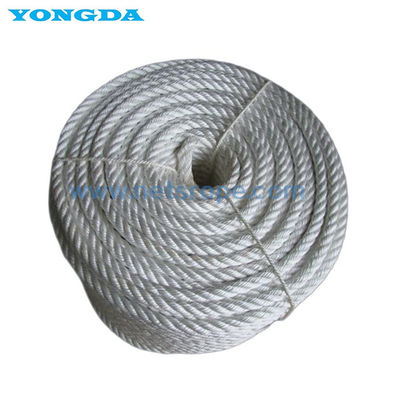

Product Photos:
FAQ:
Q0: Are you a factory or trading company?
A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.
Q1: What is your terms of packing?
A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.
Q2: What is your terms of payment?
A2: T/T & LC.
Q3: What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU.
Q4: How about your delivery time?
A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.
Q5: Can you produce according to the samples?
A5: Yes, we can produce as your samples or drawings.
Q6: What is your sample policy?
A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.
Q7: Do you test all your goods before delivery?
A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
