Product Details:
|
| Standard: | GB/T11787-2017 | Material: | Polyester |
|---|---|---|---|
| Size: | Dia: 4-56mm | Construction: | 3-strand |
| Type: | Knit | Test: | Destructive And Tension Test |
| Certificates: | RINA, BV, CCS, KR, NK, ABS, DNV, LR, RS, IRS, EC, TUV And Mill Certificate | Colour: | White, Or As Ordered |
| Application: | Ship Equipment, Port Handling, Oil Exploration, Power Construction | Advantages: | High Strength, Wear Resistance |
| Highlight: | Wear Resistance Polyester Braided Rope,Polyester Braided Rope 56mm,3 strand polyester rope 4mm |
||
Wear Resistance 3-Strand Polyester Rope
Description:
Wear resistance 3-strand polyester marine rope is not affected by weather conditions, high strength, wear resistance, compared with nylon rope after wetting, softer and more elastic. Polyester marine mooring ropes’ melting point is 260℃, which makes it a good choice for using in high temperature environment. In addition, this kind of rope has good resistance to chemicals and UV. But it has high density which makes it can’t float on the water. Polyester rope is widely used in ship equipment, port handling, oil exploration, power construction and other fields.
Main Technical Specifications:
1.Standard: GB/T11787-2017
2.Material: Polyester
3.Diameter: 4mm to 56mm
4.Construction: 3-strand
5.Type: Knit
6.Test: Destructive and Tension test
7.Classification Certificates: RINA, BV, CCS, CR, NK, ABS, DNV, LR, RS, IRS, EC, TUV and Mill Certificate
8.Color: White, or as ordered
9.Application: Ship equipment, port handling, oil exploration, power construction
10.Advantages: High strength, wear resistance
Main Technical Parameters:
| Wear resistance 3-strand polyester marine rope | |||||
| Diameter (mm) |
Weight (KG) |
Breaking Strength (daN) |
Diameter (mm) |
Weight (KG) |
Breaking Strength (daN) |
| 4 | 2.4 | 300 | 24 | 96.14 | 9400 |
| 6 | 5.94 | 620 | 28 | 130.68 | 13200 |
| 8 | 10.56 | 1130 | 32 | 171.16 | 16200 |
| 10 | 16.72 | 1640 | 36 | 216.04 | 19900 |
| 12 | 24.2 | 2360 | 40 | 267.3 | 24700 |
| 14 | 32.56 | 3280 | 44 | 322.96 | 29300 |
| 16 | 42.9 | 4200 | 48 | 385 | 34500 |
| 18 | 54 | 5200 | 52 | 451 | 40300 |
| 20 | 66.7 | 6500 | 56 | 523.6 | 46210 |
| 22 | 80.74 | 7800 | - | - | - |
DWG of Wear resistance 3-strand polyester marine rope:

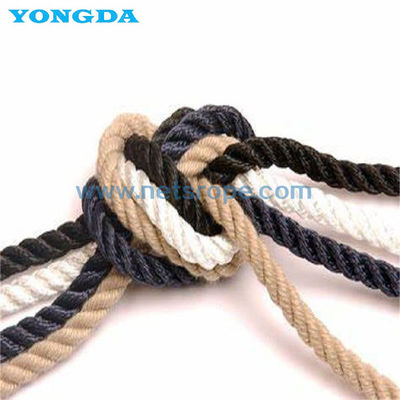

Product Photos of Wear resistance 3-strand polyester marine rope:
FAQ:
Q0: Are you a factory or trading company?
A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.
Q1: What is your terms of packing?
A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.
Q2: What is your terms of payment?
A2: T/T & LC.
Q3: What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU.
Q4: How about your delivery time?
A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.
Q5: Can you produce according to the samples?
A5: Yes, we can produce as your samples or drawings.
Q6: What is your sample policy?
A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.
Q7: Do you test all your goods before delivery?
A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
