Firefight Rescue Rope Ladder Multifunctional Aluminum Alloy

Firefight & Rescue Multifunctional Aluminum Alloy Rope Ladder

Description:

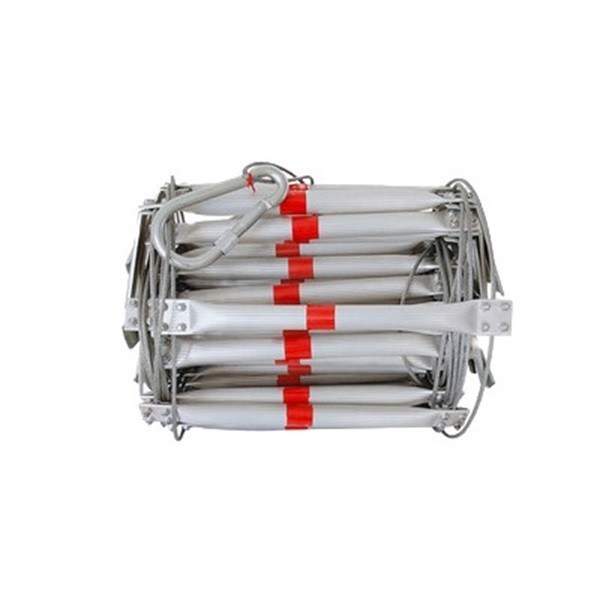

The firefight & rescue multifunctional aluminum alloy rope ladder is a versatile mobile ladder designed for rescuing and evacuating individuals trapped in fire emergencies. The firefight rope ladder can be conveniently stored in a bag and deployed in critical situations, such as when stairways are inaccessible due to fire or accidents in buildings. This aluminum rescue ladder serves various purposes including aerial work, firefighting training, underground operations, and escape from tall structures. Constructed with steel wire rope, aluminum alloy tread tubes, and steel hooks, it boasts fine craftsmanship and a robust structure with excellent impact resistance and load-bearing capacity. In the event of a fire in a high-rise building, the ladder can be hung on hooks attached to the window fixtures, enabling quick escape to the ground. Notably, this soft ladder is lightweight with a net weight of 0.7kg/m, making it easy to handle. It is also heat-resistant and made of high-carbon steel galvanized thickened steel wire rope with a nominal tensile strength of 1770MPA, ensuring durability and resistance to rust. The aluminum alloy steps feature passivation treatment to prevent scratching.

Product Features:

1. High Load-bearing Capacity: Equipped with 6mm steel wire rope, offering high strength and toughness to withstand emergency situations, with each step bearing a load of up to 75kg for safe evacuation.
2. Customizable Length: Can be tailored to suit different floor heights and escape requirements.
3. Multi-purpose Utility: Suitable for various applications including aerial work, fire training, underground operations, and high-rise escapes.
4. Excellent Anti-slip Performance: Aluminum alloy pedals feature anti-slip grooves for secure footing.
5. Rust Resistance: Aluminum alloy pedals are resistant to rust, ensuring easy maintenance and a long service life.
6. Sturdy and Durable: Treads and steel wire ropes are securely fastened with high-strength manganese steel galvanized screws and anti-loosening nuts, facilitating simple replacement of treads while ensuring close integration between the steel wire and aluminum tubes.
7. Convenient Storage: Occupies minimal storage space and can be rolled up for compact storage.
8. Versatile Fixing Options: Can be secured using pure steel hooks (firm installation, easy dismantling without wall damage), double or triple-legged board fixation (suitable for permanent installation), single triple-legged board fixation, or safety buckle fixation.

Main Technical Specifications:

1. Standard: GB21976.3-2012
2. Hook Material: Pure steel 45CrMo alloy steel
3. Net Weight of Soft Ladder: 0.7kg/m
4. Hook Bearing Tension: 1000kg
5. Soft Rope Material: Galvanized steel wire
6. Pedal Material: Aluminum alloy
7. Usage Scenarios: Working at heights, fire training, underground operations, high-rise escapes, etc.
8. Safety Load of the Entire Ladder: 500kg
9. Load Capacity of Tread Tube: 75kg
10. Tread Tube Pitch: 360mm
11. Steel Wire Rope Specification: 6mm, 6*19 electro-galvanized
12. Aluminum Alloy Tube Specification: Diameter 30mm*320mm*1.9mm
13. Treading Distance: 280mm
14. Support Distance from the Wall: 10cm
15. Length Options: 5m, 10m, 15m, 20m, 30m, 50m

Main Technical Data:

FAQ:

Q0: Are you a factory or trading company?

A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.

Q1: What is your terms of packing?

A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.

Q2: What is your terms of payment?

A2: T/T & LC.

Q3: What is your terms of delivery?

A3: EXW, FOB, CFR, CIF, DDU.

Q4: How about your delivery time?

A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.

Q5: Can you produce according to the samples?

A5: Yes, we can produce as your samples or drawings.

Q6: What is your sample policy?

A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.

Q7: Do you test all your goods before delivery?

A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
