ISO1181-2004[E] 4-Strand Hawser-Laid Sisal Rope

ISO1181-2004[E] 4-Strand Hawser-Laid Sisal Rope
ISO1181-2004[E] 4-Strand Hawser-Laid Sisal Rope

Large Image :  ISO1181-2004[E] 4-Strand Hawser-Laid Sisal Rope

Product Details:
Place of Origin: Jiangsu, P.R. China
Brand Name: YONGDA
Certification: Class certificates (RINA, BV, CCS, KR, NK, ABS, DNV, LR, IRS, RS, EC, TUV and Mill Certificate)
Model Number: ISO1181-2004[E] 4-Strand Hawser-laid Sisal Rope
Payment & Shipping Terms:
Minimum Order Quantity: ≥1
Price: As per quotation
Packaging Details: Packed
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C, etc
Supply Ability: As ordered

ISO1181-2004[E] 4-Strand Hawser-Laid Sisal Rope

Description
Standard: ISO1181-2004[E] Material: Sisal Fibre
Size: Dia: 10-96mm Construction: 4-strand
Test: Destructive And Tension Test Certificates: RINA, BV, CCS, KR, NK, ABS, DNV, LR, RS, IRS, EC, TUV And Mill Certificate
Colour: White,Yellow,Green Or As Your Needs Application: Navigation, Oil Fields, Mining, Aquatic Products, Logging, Construction, Civil, Transportation And Other Industries Etc
Advantages: Strong Tension, Acid And Alkali Resistance, Friction Resistance, Cold Resistance, Environmentally Friendly Type: Luricated Or Un-oiled
Packing: A Reel, A Coil, A Hank, A Box, A Bag Or As Specified By The Buyer Delivery Length: 100 M; 183 M; 200 M; 220 M; 366 M Or As Specified By The Buyer
High Light:

Unoiled mining Marine Mooring Rope

,

aquatic products Marine Mooring Rope

,

Hawser Laid mooring hawser rope

ISO1181-2004[E] 4 Strand Hawser-laid Sisal Rope



Description:

ISO1181-2004[E] 4 Strand Hawser-laid Sisal Rope is made of high quality sisal fiber. It is constructed Z-twist (right-hand lay),their strands S-twist and their roping yarns Z-twist. ISO1181-2004[E] 4-Strand Hawser-laid Sisal Rope can be widely used in navigation, oil fields, mining, aquatic products, logging, construction, civil, transportation and other industries due to its strong tension, acid and alkali resistance, friction resistance, cold resistance, environmentally friendly and other characteristics. A cordage oil lubricant of suitable quality shall be applied to Sisal ropes. The lubricant shall not impart an offensive odour tothe finished rope Anti-bacterial additives for sisal may be added to extend the performance of the natural fibre when requested by the buyer.


Main Technical Specifications:

1.Standard: ISO1181-2004[E]

2.Material: Sisal fiber

3.Diameter: 10mm to 96mm

4.Construction: 4-Strand

5.Type: Luricated or Un-oiled

6.Test: Destructive and Tension test

7.Classification Certificates: RINA ,BV ,CCS ,CR ,NK ,ABS ,DNV ,LR and Mill Certificate

8.Color: White, as your needs

9.Application: Navigation, oil fields, mining, aquatic products, logging, construction, civil, transportation and other industries etc

10.Advantages: strong tension, acid and alkali resistance, friction resistance, cold resistance, environmentally friendly

11.Packing: A reel, a coil, a hank, a box, a bag or as specified by the buyer

12.Delivery length: 100 m; 183 m; 200 m; 220 m; 366 m or as specified by the buyer



Main Technical Parameters:

Linear desity and minimum breaking strength(MBS) of ISO1181-2004[E] 4-Strand Hawser-laid Sisal Rope

Reference NO.
mm
Linear density

Minimum breaking strength

kN

Nominal
ktex
Tolerance
%
10 69.3 ±8 6.24
12 99.8 8.87
14 136 12.0
16 177 ±5 15.5
18 225 19.4
20 277 23.9
22 335 28.7
24 399 34.0
26 468 39.8
28 543 45.9
30 624 52.5
32 710 59.4
36 898 74.6
40 1110 91.8
44 1340 110
48 1600 131
52 1870 152
56 2170 176
60 2490 201
64 2840 228
68 3200 256
72 3590 285
76 4000 317
80 4440 350
88 5370 421
96 6390 498
  1. The linear density(in kilotex) corresponds to the net mass per length of the rope,expressed in grams per metre or in kilograms per thousand metres.
  2. The linear density is under reference tension and is measured as specified in ISO 2307.
  3. The breaking strength quoted above relate to new dry and wet ropes.


Drawing of ISO1181-2004[E] 4-Strand Hawser-laid Sisal Rope:

ISO1181-2004[E] 4-Strand Hawser-Laid Sisal Rope 0

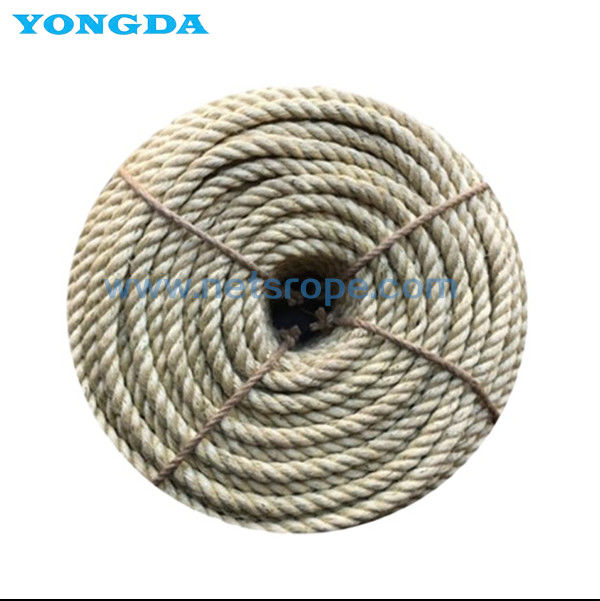

Product Photo of ISO1181-2004[E] 4-Strand Hawser-laid Sisal Rope:

ISO1181-2004[E] 4-Strand Hawser-Laid Sisal Rope 1



ISO1181-2004[E] 4-Strand Hawser-Laid Sisal Rope 2



FAQ:

Q0: Are you a factory or trading company?

A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.



Q1: What is your terms of packing?

A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.



Q2: What is your terms of payment?

A2: T/T & LC.



Q3: What is your terms of delivery?

A3: EXW, FOB, CFR, CIF, DDU.



Q4: How about your delivery time?

A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.



Q5: Can you produce according to the samples?

A5: Yes, we can produce as your samples or drawings.



Q6: What is your sample policy?

A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.



Q7: Do you test all your goods before delivery?

A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
